Introduction
In the realm of high-speed data transmission, 100G optical modules have emerged as pivotal components in modern networking. These modules facilitate the rapid transfer of data across vast distances, catering to the ever-increasing demand for bandwidth. Among the various types of 100G modules, the LR4 (Long Range 4) module stands out for its ability to support long-distance communication, making it crucial for metro networks, wide area networks (WANs), and long-haul links.
Definition and Application Scenarios of 100G LR4 Modules
The 100G LR4 module employs advanced technology designed specifically for long-range data transmission. It operates using four parallel optical signals at a data rate of 25 Gbps each, culminating in a total bandwidth of 100 Gbps. This technology leverages dense wavelength division multiplexing (DWDM) to maximize capacity over existing fiber infrastructure.
Use Cases
100G LR4 modules are predominantly used in various application scenarios:
- Metro Networks: They serve as the backbone for metropolitan area networks, facilitating high-speed connections between data centers and local exchanges.
- Wide Area Networks (WANs): LR4 modules are essential for linking geographically dispersed networks, enabling seamless data exchange between different regions.
- Long-Haul Links: Their ability to transmit data over extended distances without significant signal degradation makes them ideal for long-haul fiber optic networks, which can span hundreds of kilometers.
Technical Specifications
When considering 100G LR4 optical modules, several technical specifications are key to understanding their capabilities:
- Data Rate: As mentioned, LR4 modules achieve a data rate of 100 Gbps by utilizing four lanes of 25 Gbps each.
- Connector Type: These modules typically utilize the LC connector, which is standard for many optical connections.

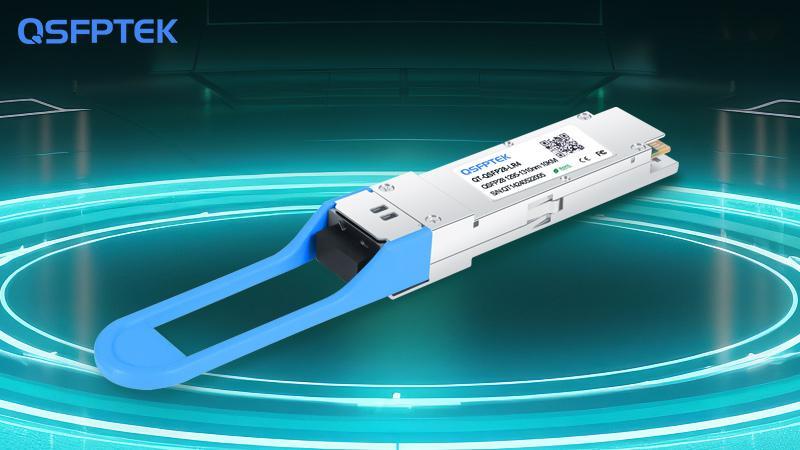

- Physical Attributes: LR4 modules come in a compact form factor, often in SFP28 (Small Form-factor Pluggable) or QSFP28 (Quad Small Form-factor Pluggable) formats, ensuring compatibility with existing hardware.
IEEE Standards
100G LR4 modules adhere to the IEEE 802.3ba standard, which outlines specifications for 100GBASE-LR4 technology. This standard ensures interoperability among various manufacturers and systems, promoting a more flexible networking environment.
Transmission Distance and Bandwidth of LR4 Modules
One of the standout features of 100G LR4 modules is their transmission distance capabilities. They can typically transmit data up to 10 kilometers over single-mode fiber (SMF). This extended reach is achieved without significant loss of signal integrity, allowing for high-quality, reliable data transmission over long distances.
In terms of bandwidth, the LR4 modules maintain exceptional performance. They can handle large volumes of data traffic efficiently, which is crucial for service providers and enterprises looking to optimize their networks.
Advantages and Limitations of LR4 Modules
Benefits
The advantages of using 100G LR4 modules are substantial:
- Extended Reach: LR4 modules are designed for long-distance communication, making them suitable for applications where distance is a factor.
- Reliability: With their robust design and adherence to standards, these modules offer high reliability and consistent performance.
Challenges
However, there are also some limitations to consider:
- Higher Cost: Compared to other optical modules, such as short-range (SR) modules, LR4 modules tend to be more expensive. This can impact budget considerations, especially for large-scale deployments.
- Increased Power Consumption: The power requirements for LR4 modules are generally higher than those for their short-range counterparts, which can be a concern in energy-sensitive environments.
Environments Suitable for LR4 Module Use
Given their characteristics, 100G LR4 modules are ideally suited for several environments:
- Long-Distance Data Transmission: They are perfect for applications requiring reliable data transfer over extensive distances, such as connecting regional data centers or remote offices.
- Enterprise Networks: Companies with expansive networks can benefit from LR4 modules to interconnect various locations seamlessly.
- Telecom Applications: Service providers utilize LR4 modules for backhauling traffic in metro and long-haul networks, ensuring high-speed connectivity across their infrastructure.
Conclusion
In summary, the 100G LR4 optical module plays a critical role in long-distance networking. Its ability to transmit data over significant distances while maintaining high bandwidth makes it a valuable asset for metro networks, WANs, and long-haul applications. While the module comes with higher costs and power consumption, its advantages, such as extended reach and reliability, often outweigh these challenges. When comparing it to 100G SR modules, the LR4’s strengths lie in its ability to cater to long-distance requirements, making it the go-to choice for organizations looking to enhance their networking capabilities.
